Electrofusion Fittings

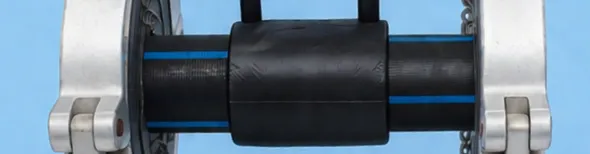

Large-diameter electrofusion coupler for joining PE pipes in trunk mains and high-capacity distribution systems. BKB – PE 100 Black – 4mm Pin BKA – PE 100 Black – 4.7mm Pin BK8 – PE 80 Black – 4mm Pin YEA – PE 80 Yellow – 4.7mm Pin

75mm - 315mm

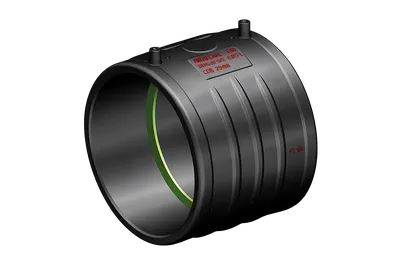

Kimplas Electrofusion Couplers are manufactured in PE 100 (Black) material and are of SDR 17.6 rated.

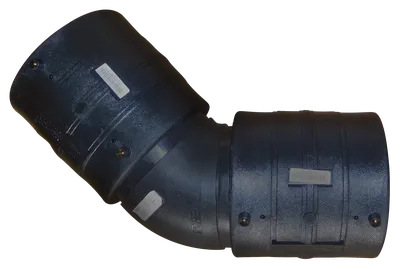

Kimplas Electrofusion Elbows Higher Size are manufactured in PE 100 (Black) material and are of SDR 11 rating (PN 16) rated. For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion Elbows are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight as well as in coil form.

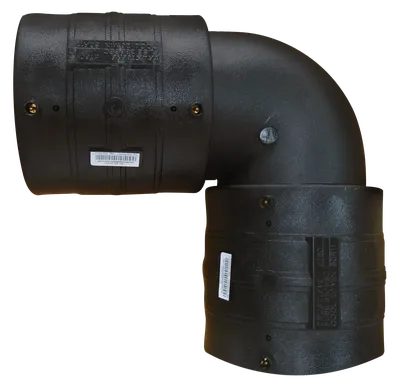

Kimplas Electrofusion Elbows Higher size are manufactured in PE 100 (Black) material and are of SDR 11 (PN 16) rated. They are suitable to weld SDR 9 through SDR 21 or PN 6 through PN 16 Pipes. Kimplas Electrofusion Elbows are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight as well as in coil form.

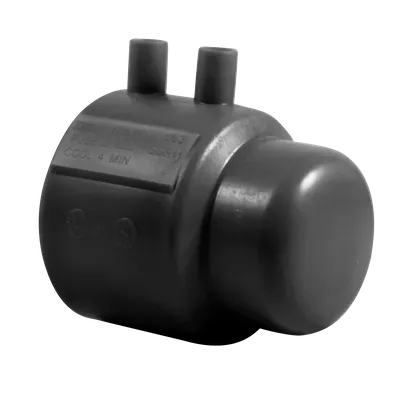

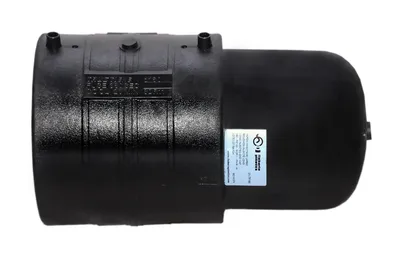

Kimplas Electrofusion End Caps are manufactured in PE 80 (Yellow) & PE 100 (Black) material and are of SDR 11 rating. One piece end caps are designed with a provision of using alignment clamps while installation. For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting to PE 80 and PE 100 pipes, both in straight as well as in coil form.

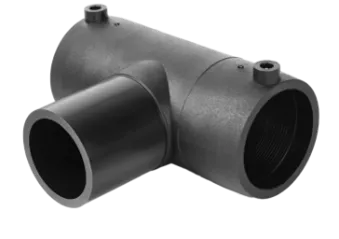

EF Reducing Tee

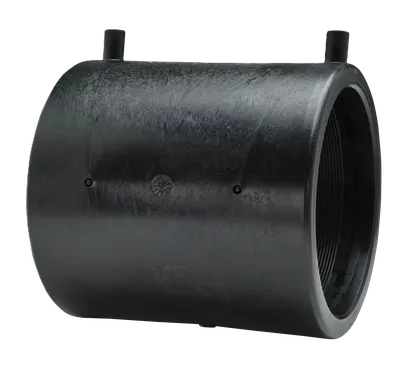

Kimplas Electrofusion couplers, manufactured in PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight form as well as coiled form.

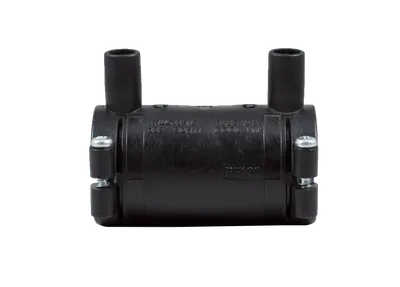

Standard electrofusion coupler for straight-through joining of PE pipes. Ensures leak-proof fusion joints conforming to ISO 8085 / EN 12201 part 3.

20mm - 63mm

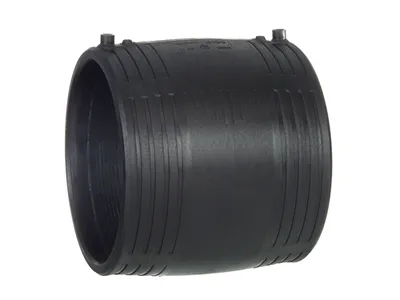

EF Coupler Higher Sizes SDR 11

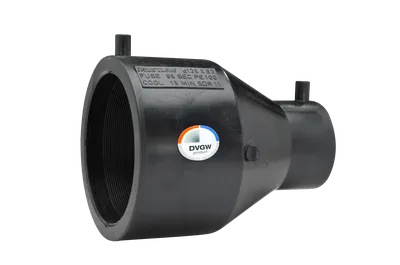

Kimplas Electro-fusion reducers are manufactured in PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight form as well as coiled form.

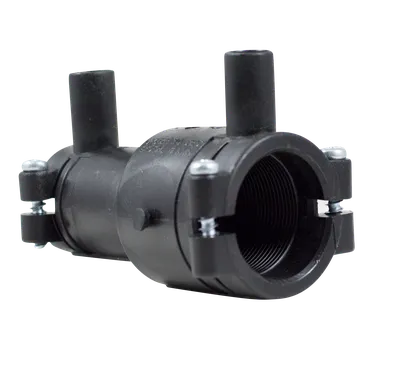

Electrofusion reducer for transitioning between different PE pipe diameters while maintaining a fully fused, leak-proof joint.

25mm - 63mm

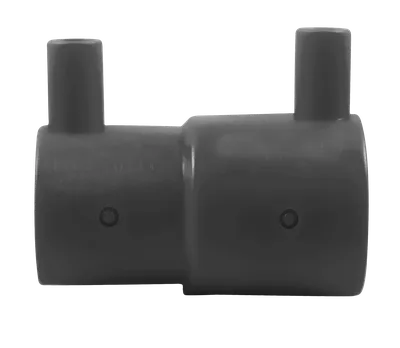

Kimplas Electrofusion Reducers (Imperial Sizes) are manufactured in PE 80 (Yellow) maetrial and are of SDR 11 rating. For exact recommendations on compatibility for welding with SDR 9 through SDR 21, refer Kimplas Technical Manual. Kimplas Electrofusion Reducers are suitable for permanently connecting PE 80 pipes, both in straight as well as in coil form.

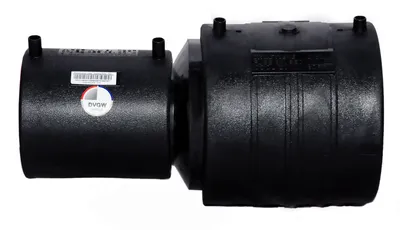

Kimplas Higher size Electrofusion Reducers are manufactured in PE 100 (Black) material and are of SDR 11 rating (PN 16). They are suitable to weld SDR 9 through SDR 21 or PN 6 through PN 16 Pipes. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight as well as in coil form.

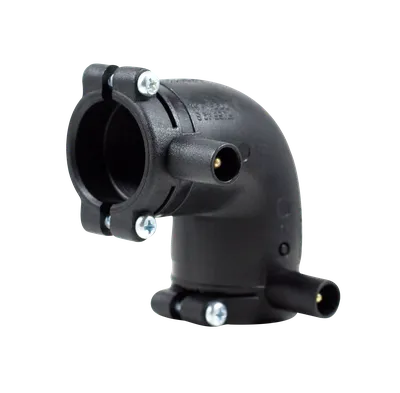

Kimplas Electrofusion 90° Elbows are manufactured in PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight form as well as in coil form.

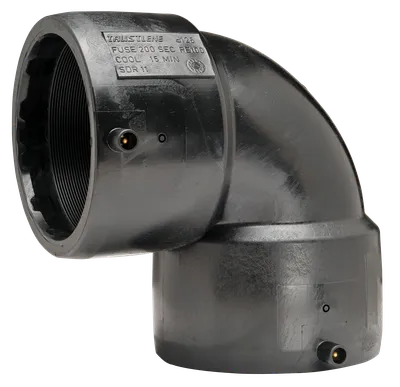

90-degree electrofusion elbow for right-angle direction changes. Fully compliant with EN 12201 and ISO 8085 standards.

20mm - 63mm

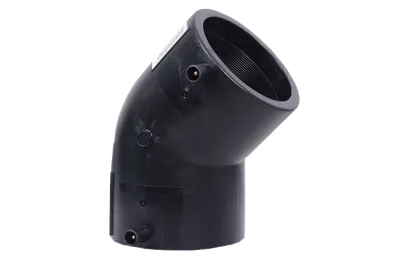

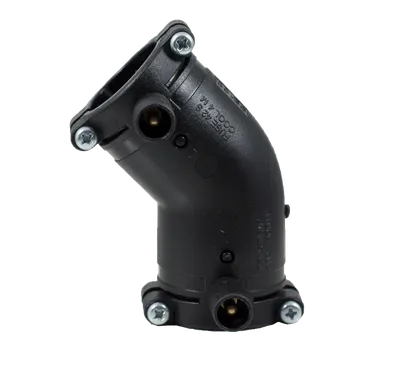

45-degree electrofusion elbow for directional changes in PE piping systems. Suitable for water and gas applications.

20mm - 63mm

Kimplas Electrofusion Elbows are manufactured in PE 80 (Yellow) and PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual.Kimplas Electrofusion Elbows are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight as well as in coil form.

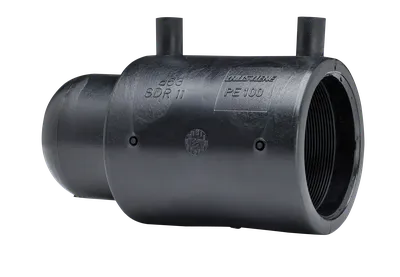

Kimplas Electrofusion End cap are manufactured in PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight form as well as in coil form.

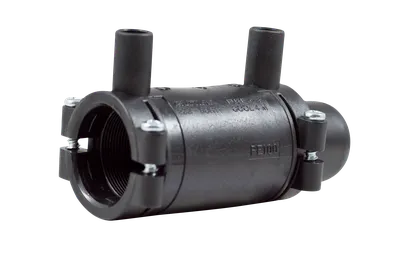

Electrofusion end cap for permanent sealing of PE pipe ends. Ideal for dead-end terminations in gas and water networks.

20mm - 63mm

Kimplas Electrofusion End Caps consist of a Standard Electrofusion Coupler and a Spigot End Cap and are manufactured in PE 80 Yellow and PE 100 Black material and are of SDR 11 rating. For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer to Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting to PE 80 and PE 100 pipes, both in straight as well as in coil form.

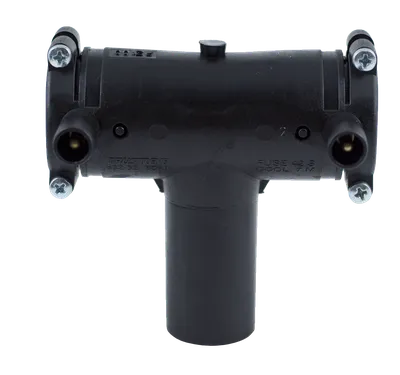

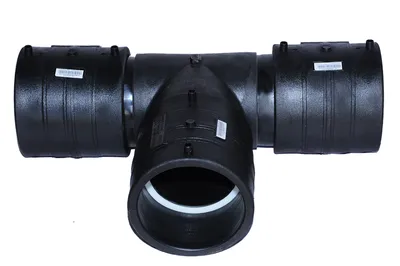

Kimplas Electrofusion Equal tees are manufactured in PE 100 Black material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting MDPE 80 and PE 100 pipes, both in straight form as well as in coil form.

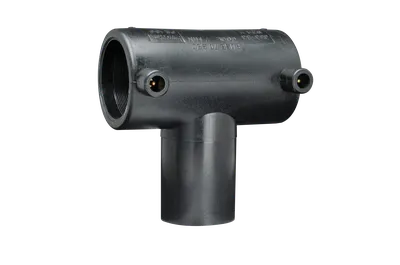

Electrofusion equal tee for creating T-junctions in PE pipeline networks. Available for water and gas distribution.

20mm - 63mm

Kimplas Electrofusion Equal Tee are manufactured in PE 100 (Black) material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe,refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting PE80 and PE100 pipes, both in straight as well as in coil form.

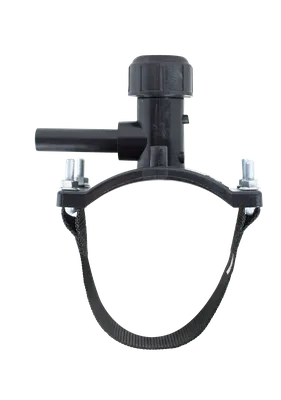

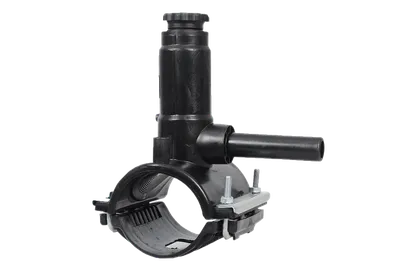

Kimplas Electrofusion Wrap Around Tapping Tees are manufactured in PE 100 (Black) material and of SDR 11 rating (PN 16). Kimplas Electrofusion Wrap Around Tapping Tees are suitable for Tapping on MDPE 80 & PE 100 pipes, both in straight as well as in coil form.

32mm - 75mm

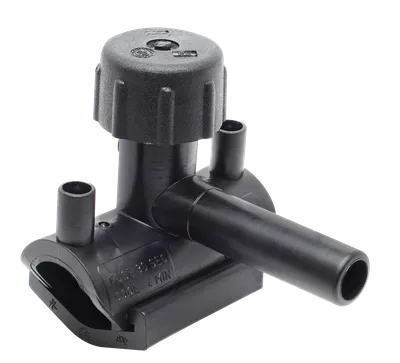

Kimplas Electrofusion Wrap Around Tapping Tees are manufactured in PE 100 (Black) material and of SDR 11 rating (PN 16). Kimplas Electrofusion Wrap Around Tapping Tees are suitable for Tapping on MDPE 80 & PE 100 pipes, both in straight as well as in coil form.

Kimplas Electrofusion Wrap Around Tapping Tees are manufactured in PE 100 (Black) material and of SDR 11 rating (PN 16). Kimplas Electrofusion Wrap Around Tapping Tees are suitable for Tapping on MDPE 80 & PE 100 pipes, both in straight as well as in coil form.

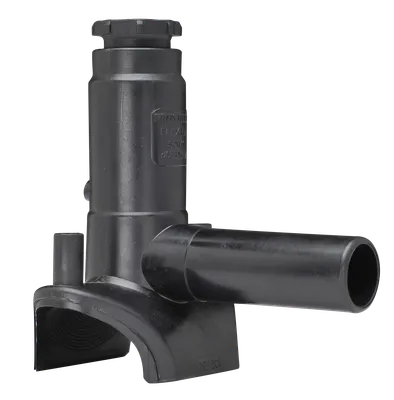

Kimplas Electrofusion Flexi-Fit Tapping Tees are manufactured in PE 80 (yellow) and PE 80 (Black) material and are of SDR 11 rating (PN 16). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion TTs are suitable for tapping from PE 80 and PE 100 pipes, both in straight as well as in coil form.

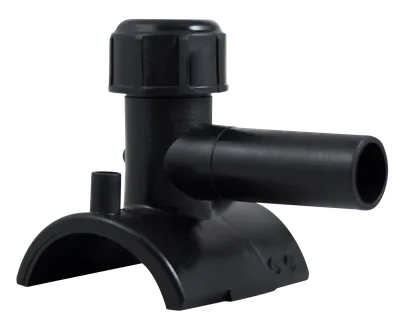

Kimplas Electrofusion Tapping Tees, manufactured in PE100 (Black) grade are SDR 11 rated (PN 16). Kimplas Electrofusion Tapping Tees are suitable for Tapping House Service Connections on MDPE 80 and PE 100 pipes, both in straight as well as coil form.

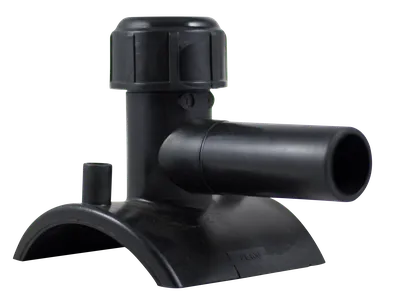

Electrofusion tapping tee for live mains tapping without disrupting supply. Features integrated cutter mechanism.

32mm - 63mm

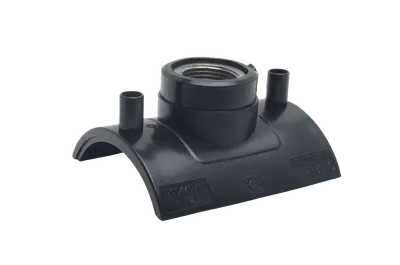

Kimplas Electrofusion Flexi-Fit Branch Tapping Saddles are manufactured in PE 80 (Black) material with threaded metal insert outlets and are of SDR 11 rating ( PN 12.5).

20mm - 315mm

Kimplas Electrofusion Branch Tapping Saddles with bottom wrap are manufactured in PE 80 (Black) material with threaded metal insert outlets and are of SDR 11 rating ( PN 12.5). For exact recommendations on compatibility, for welding with SDR 9 through SDR 21 or PN 6 through PN 16 pipe, refer Kimplas Technical Specifications Manual. Kimplas Electrofusion fittings are suitable for permanently connecting drinking water distribution MDPE 80 and PE 100 pipes, both in straight form as well as in coil form.

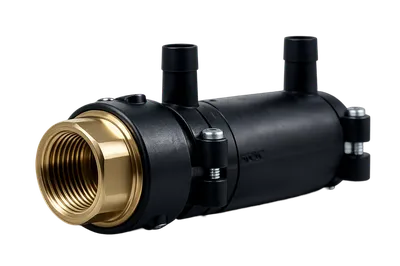

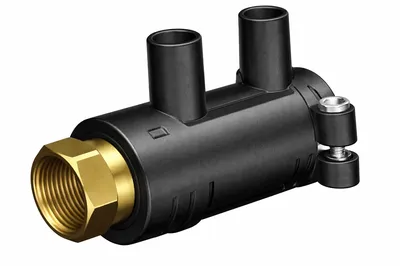

EF IC Metal Brass Transition Coupler

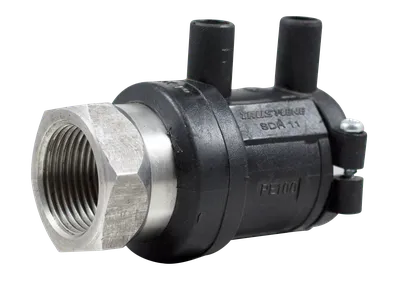

Ef IC Metal SS Transition Coupler

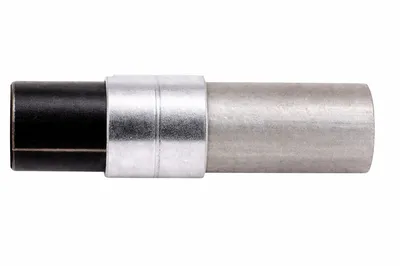

Carbon Steel – API 5L PE 100 SDR11 Pipe as per ISO 4437

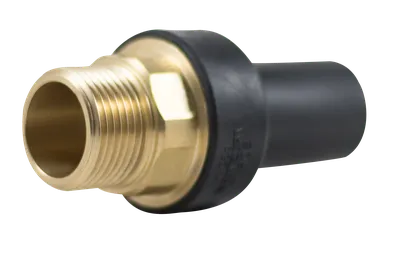

Brass Spigot Transition Fitting - MAle BSPT

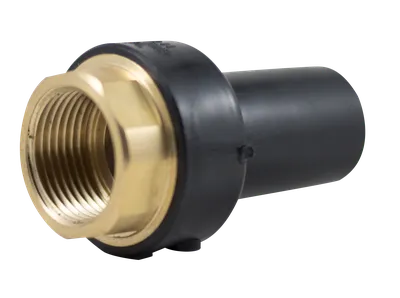

Brass Spigot Transition Fitting Female BSP

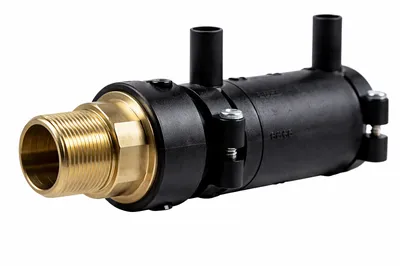

EF BRASS TRANSITION COUPLER MALE

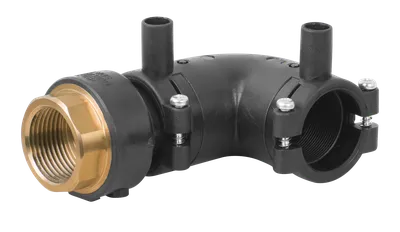

EF Brass Transition Elbow 90 Deg Female

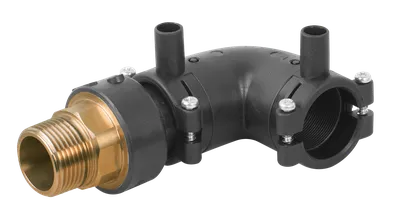

Ef Brass Transition Elbow 90 Deg Male

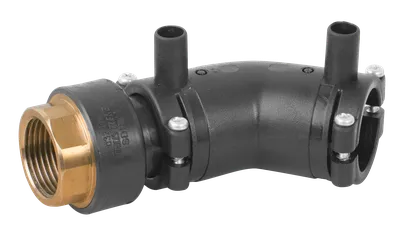

EF Brass Transition Elbow 45 Deg Female

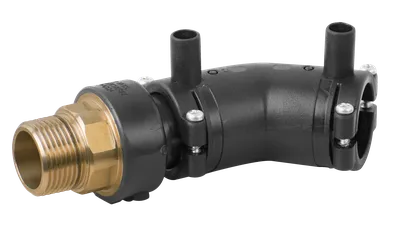

EF Brass Transition Elbow 45 Deg Male. FBSPBKD – PE 100 Black – BSP – 4mm Pin FNPTBKD – PE 100 Black – NPT – 4mm Pin

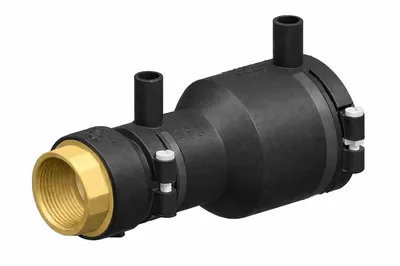

EF Brass Transition Reducer Female FBSPBKD – PE 100 Black – BSP – 4mm Pin FNPTBKD – PE 100 Black – NPT – 4mm Pin

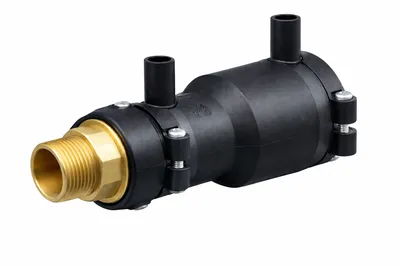

EF Brass Transition Reducer Male. MBSPTBKD – PE 100 Black – BSPT – 4mm Pin MNPTBKD – PE 100 Black – NPT – 4mm Pin
