K-315 Electrofusion Welding Machine
Welding PE pipes and fittings upto dia. 315mm
20mm - 315mm
Applications
- A new product from the leaders of Electrofusion Technology.
- Designed for portable reliability.
- Electrical protection to Class - 1 earthed.
- Memory to store up to 4000 weld data.
- Can be configured for any fusion voltage between 8 – 48 V AC.
- Choice of manual & automatic mode in same machine.
- Graphical LCD display.
- Automatic mode temperature compensation.
- GPS tracking feature as optional.

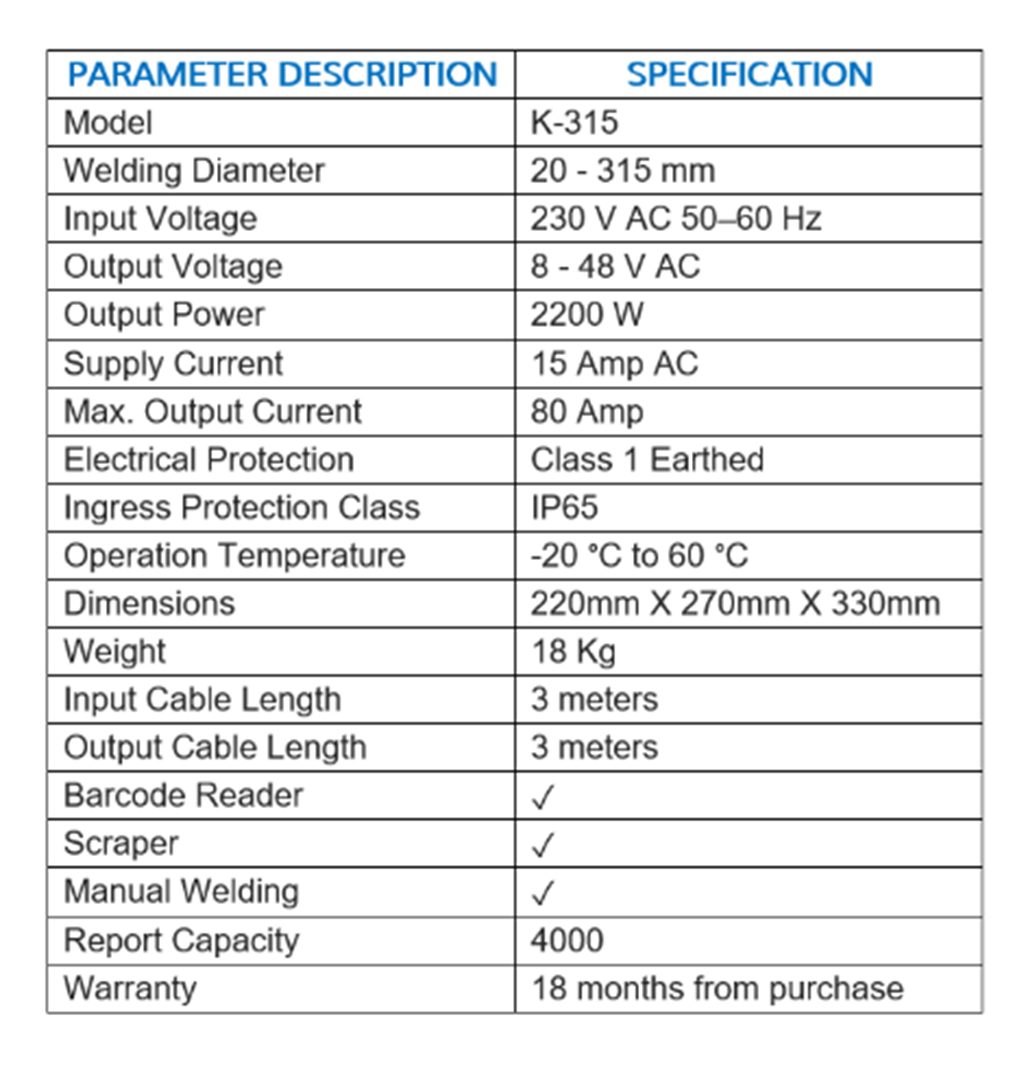

| PARAMETER DESCRIPTION | SPECIFICATION |
|---|---|
| Model | K-315 |
| Welding Diameter | 20 - 315 mm |
| Input Voltage | 230 V AC 50–60 Hz |
| Output Voltage | 8 - 48 V AC |
| Output Power | 2200 W |
| Supply Current | 15 Amp AC |
| Max. Output Current | 80 Amp |
| Electrical Protection | Class 1 Earthed |
| Ingress Protection Class | IP65 |
| Operation Temperature | -20 °C to 60 °C |
| Dimensions | 220mm X 270mm X 330mm |
| Weight | 18 Kg |
| Input Cable Length | 3 meters |
| Output Cable Length | 3 meters |
| Barcode Reader | ✓ |
| Scraper | ✓ |
| Manual Welding | ✓ |
| Report Capacity | 4000 |
| Warranty | 18 months from purchase |
Water Distribution & House Service Connections
Reducing transmission losses with reliable piping solutions
Gas Distribution
Pioneer in Electrofusion Fittings for Gas Distribution since 1996
Building & Infrastructure
MDPE Pipes & Electrofusion Fittings for modern infrastructure
Solar Module Cleaning System(MCS)
Products for Solar Module Cleaning System
