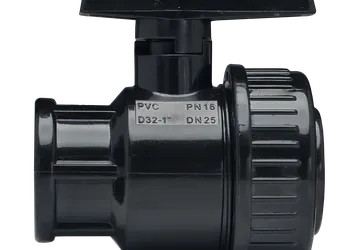

BALL VALVE FEMALE – FEMALE THREADED
Kimplas UPVC Ball Valves are designed to use with threaded PVC and metal pipes. Kimplas PVC Ball Valves fittings are ideally suited for connecting HSC (House Service Connections) in Drinking Water Distribution piping networks. The Valves are recommended for Cold Water Services within temperature range of 0°C to 40°C. For exact recommendations on use and applications, refer Kimplas Technical Specifications Manual.
Applications
Kimplas UPVC Ball Valves are designed to use with threaded PVC and metal pipes. Kimplas PVC Ball Valves fittings are ideally suited for connecting HSC (House Service Connections) in Drinking Water Distribution piping networks. The Valves are recommended for Cold Water Services within temperature range of 0°C to 40°C. For exact recommendations on use and applications, refer Kimplas Technical Specifications Manual.
| d | DN | ITEM Code | g | SP | L | D | H | A | X" BSP |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 15 | BVFF20X050BKA | 90 | 150 | 66 | 49 | 52 | 60 | 1/2" |
| 25 | 20 | BVFF25X075BKA | 142 | 100 | 80 | 60 | 58 | 65 | 3/4" |
| 32 | 25 | BVFF32X100BKA | 210 | 60 | 90 | 68 | 66 | 75 | 1" |
Standards: Pipe compatibility: Threaded PVC and metal pipes Dimensions, Features& Functional Tests: ISO:3501, ISO:3503, ISO:3459 Threading: IS:554, ISO:7/1, DIN:2999 Complies with ISO:1452 - Part 4
