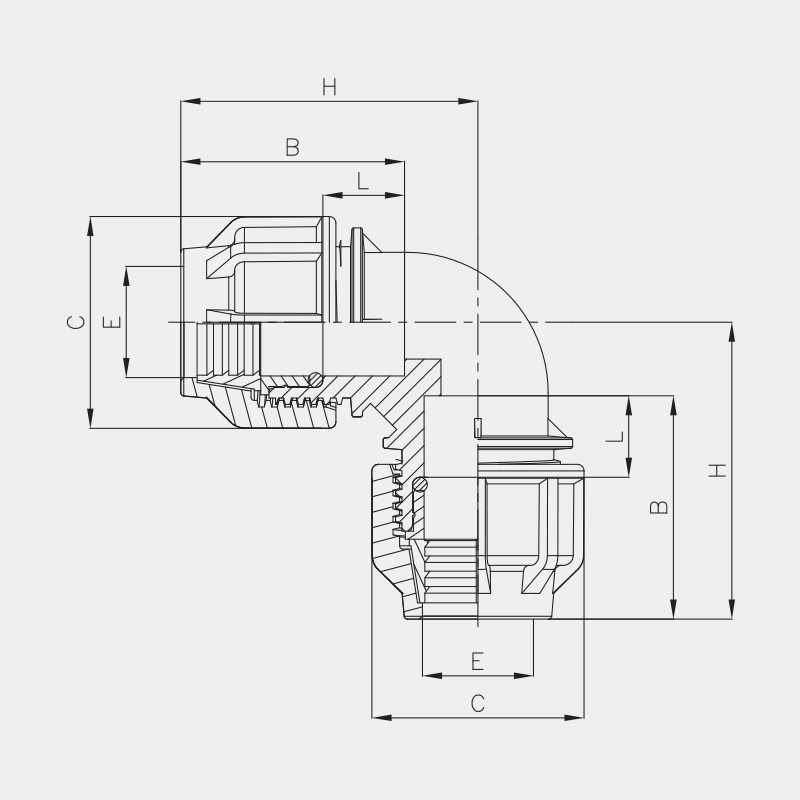

Kimplas Compression Elbow fittings PN 16 and are designed to use with all types of Polyethylene Pipes i.e. HOPE, MOPE (grade PE100, PE80, PE63, etc.). Unique design of the fitting facilitates insertion of the pipe into fitting without disassembling the fitting.

The working temperature range of the fittings is - 5° to+ 40°C and the fittings are recommended for cold water services only. The fittings are ideally suited for connecting House Service Connections in Drinking Water Distribution piping networks. For exact recommendations on the applications and use,refer Kimplas Technical Specifications Manual.

Standards:

• Pipe compatibility ISO:4427-2, EN:12201-2, IS: 4984, DIN:8074
• Dimensions,features & functional tests: ISO:3501, ISO:3503, ISO:3459
• Complies with ISO:14236

Download Datasheet
